Long Serving Span Top Quality Easy to Operate High Viscosity Rotary Pump Filling Machine | Precise Anti-Drip Paste & Sauce Filling Machine

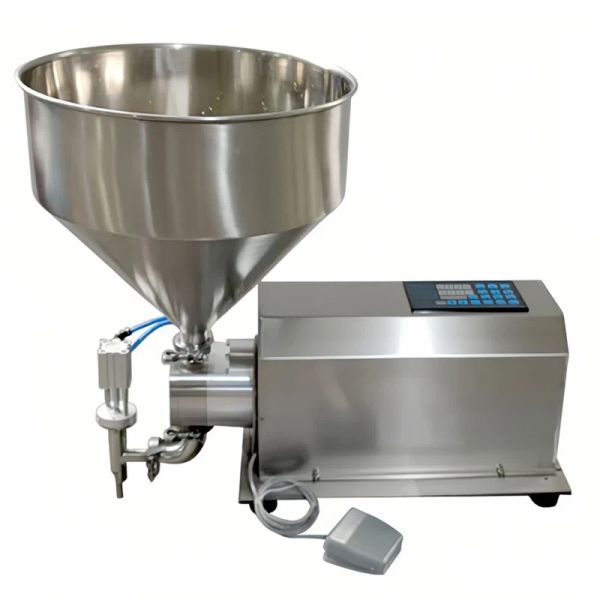

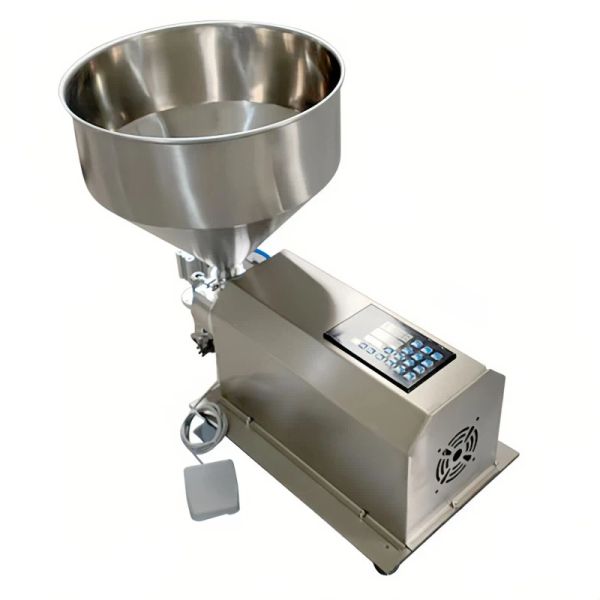

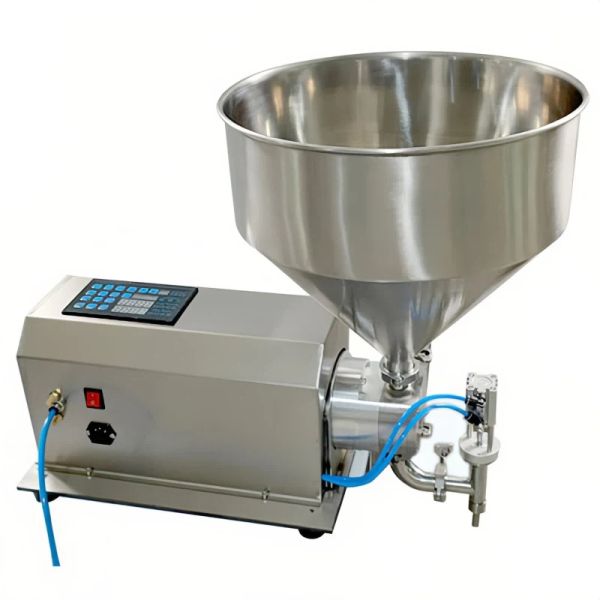

This high-performance rotary pump filling machine is professionally engineered for high-viscosity paste and thick liquid materials, solving the common industrial challenges of unstable flow, uneven dosing, dripping and wire drawing during paste filling. Ideal for processing honey, sesame paste, chili sauce, chocolate sauce, cooling ointment, meat paste, gel and various skincare viscous products, this single-head filling equipment delivers steady output, reliable precision and versatile compatibility. With a wide filling range, compact structure and user-friendly operation, it serves as a perfect cost-effective filling solution for food, cosmetic and daily chemical small-to-medium production lines.
Stable Rotary Pump Structure for Thick Material Filling
Equipped with a premium stainless steel rotary pump head, the machine features tiny operating clearance and excellent overall sealing performance. Compared with ordinary filling pumps that struggle with thick and sticky materials, its optimized rotor pump design ensures a highly stable filling rate without blockage, surge or intermittent flow. The high-quality pump core greatly enhances wear and corrosion resistance, supporting long-duration continuous operation and extending the overall service life of the equipment. Whether handling fluid honey or ultra-thick sesame paste and ointment, it maintains consistent feeding and uniform filling results.
Precise Filling Accuracy & Full Anti-Drip Performance
Featuring a multi-mechanism anti-drip filling nozzle system, this filling machine achieves completely leak-free and clean filling. It effectively prevents dripping, residue overflow and material wire drawing when the machine stops or switches working cycles, keeping workstations tidy and reducing raw material waste. The machine delivers a reliable filling accuracy of ±1%, ensuring every finished product meets uniform dosage standards. It supports an ultra-wide filling range from 5ml to 3500ml, fully covering small-batch fine filling and large-capacity quantitative production. The replaceable nozzle design adapts to different container types for flexible multi-product production.
Simple Operation & Efficient Heat Dissipation Design
The machine is fitted with an intuitive control panel that allows fast and precise parameter adjustment. Operators can easily set filling volume and speed without professional training, greatly improving production efficiency and lowering labor costs. To cope with heat generated during long-hour working cycles, reserved ventilation and heat dissipation holes quickly discharge excess heat, avoiding high-temperature aging and component failure. This scientific heat dissipation structure significantly stabilizes machine performance and prolongs equipment service life, ensuring consistent long-term operational stability.
Compact, Lightweight & Wide Industrial Compatibility
With a lightweight 35kg body and compact dimension of 1000*500*600mm, the machine saves workshop space and allows flexible placement and movement. Running stably at 2KW power and 220V universal voltage, it supports adjustable filling speed from 10 to 25 bottles per hour to match different production demands. Suitable for all homogeneous high-viscosity pastes, it is a durable, low-maintenance and high-cost-performance filling machine for various food and cosmetic viscous material production.
Scope of application

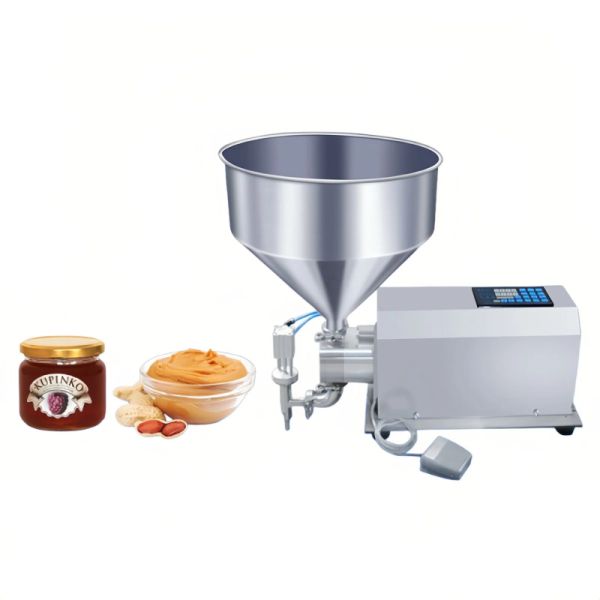

Paste materials with high viscosity, such as chili sauce, peanut butter, chocolate sauce, skin care products, meat paste, gel, etc.
Details:
1. Control panel
Simple control panel, easy to operate, various parameters can be easily and quickly adjusted.
2. Leak proof filling nozzle
The anti drip filling system is composed of multiple mechanisms, with precise and leak free filling. It can be replaced with different specifications and is suitable for various containers.

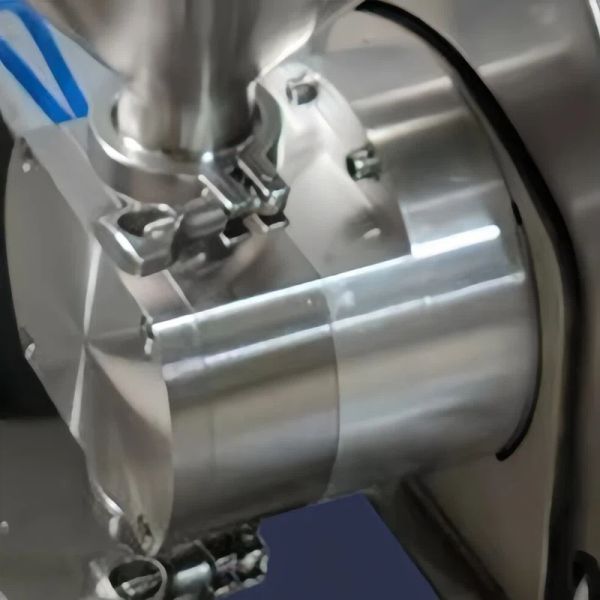

3. Rotary pump head
The rotor pump head is made of stainless steel, with small operating clearance, good sealing performance, and long service life.

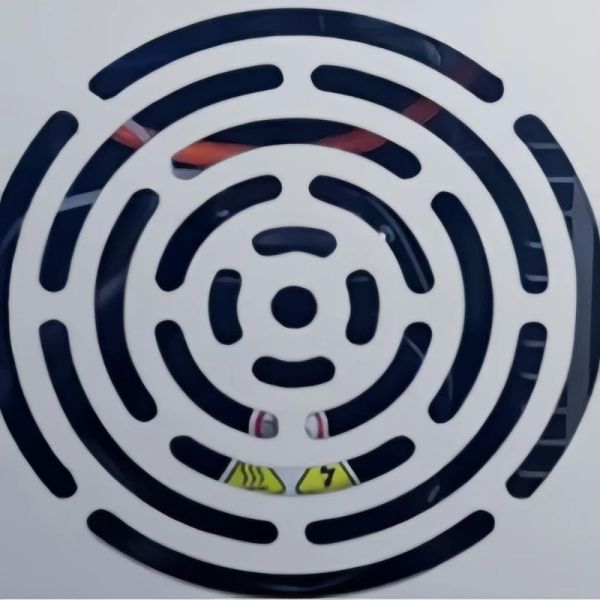

4. Ventilation and heat dissipation
The machine generates high temperatures during use, and the heat dissipation holes can promptly eliminate excess heat, effectively extending the lifespan of the machine.
Technical parameters:
|
Model
|
GNFS-ZB035
|
|
Filling speed
|
10-25b/min
|
|
Filling range
|
5-3500ml
|
|
Filling head
|
1
|
|
Filling accuracy
|
±1%
|
|
Power
|
220V 50-60Hz
|
|
Frequency
|
2kw
|
|
Dimension
|
1000*500*600mm
|
|
Weight
|
35kg
|
